SKU

22A134

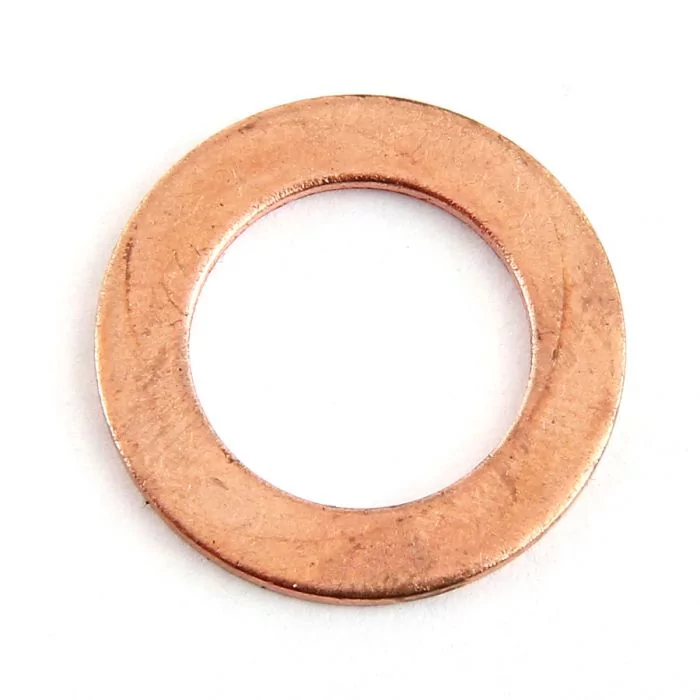

Sump Plug Copper Washer

Name: Sump Plug Copper Washer
SKU: 22A134
Price: 1.188001 GBP
Availability: InStock

Be the first to review this product

Special Price £1.19 £0.99 Regular Price £1.44

In stock

SKU

22A134

Copper washer for the magnetic sump plug (DAM7335) which fits into the Mini gearbox.

Frequently Bought Together

Sump Plug Copper Washer
Special Price £1.19 £0.99 Regular Price £1.44
Oil Filter - Mini 1.3i MPi 97-01
Special Price £6.58 £5.48 Regular Price £7.20
Castrol Oil - XL20w50 ( 4.5Ltr)
Special Price £43.39 £36.16 Regular Price £45.77
Magnetic Sump Plug - all Mini models
Special Price £10.85 £9.04 Regular Price £12.00
Radiator Cap - 7lb - Long Neck
Special Price £4.54 £3.78 Regular Price £5.08

Details

Copper washer for the oil drain sump plug fitted in the Mini gearbox.

A quick fix solution for oil seepage from the sump plug that is caused by slight wear of the copper washer after multiple oil changes.

DAM7335 - Magnetic sump plug
TOL1REC2515 - Sump Plug Recoil Kit - Mini Sump Plug 5/8'' UNC (if the threads are damaged)
TOL11863 - Sump Plug Socket - 15/16"

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Case - Transmission	BHM5093
2	ÔOÕ Ring Seal - Gearbox To Block	2A3606
	Stud - engine block to gearbox	FHS2410
3	Bolt - Long	GHF102
4	Set Screw - Short	GFK5180
5	Washer - Spring	GFK1124
6	Gearbox Casing Speedo End Cover	DAM5219
7	Speedo End Cover Gasket	22A541B
8	Bolt - 5/16"UNC X 1 1/8"	SH505091
9	Washer - Spring	GFK1125
10	Nut - 5/16"UNF	GHF201
11	Speedo Drive Housing End Plate	2A3626
12	Gasket - Speedo Drive Housing End Plate	GUG705564GM
13	Set Screw - 1/4"Unc X 3/4"	SH504061
14	Stud - Differential Cover	22G1834
15	Stud - Differential Cover To Case Ð Short	53K1471
16	Stud - Flywheel Housing To Case Ð Long	22A152
17	Stud - Flywheel Housing To Case Ð Short	53K547
18	Stud - Front Cover - Long	53K1474
19	Bush - Steady Shaft	13H7286
20	Dowel - Flywheel Housing	22A97
21	Dowel - Front Cover	22A13
22	Lock Washer	42H500
23	Lock Washer	22A251
24	Washer - Spring	GFK1125
25	Nut - Differential Cover	GHF201
26	Gasket Ð Upper, Differential Cover	2A3505
27	Gasket Ð Lower, Differential Cover - Rod Change	22G1836
	Gasket Ð Lower, Differential Cover - Remote Change	2A3506
28	Bearing-Needle Roller-Idler	TUK100320
29	Selector Shaft Seal Kit	MSK017
30	Seal - Differential Cover (Selector Shaft)	AHU1672
31	Bush (Aluminium) Selector	DAM8706
32	'O' Ring Seal - Selector Bush	CDU1563
33	Boot - Selector Shaft Seal	DAM3022
	Bolt Differential Cover To Case Ð Short	DAM7760
34	Bolt Flywheel Housing To Case Ð Short	DAM7756
35	Bolt Flywheel Housing To Case Ð Long	DAM7759
36	Bolt Front Cover-Long	DAM7761
37	Oil Strainer	22A335
38	O Ring - Pipe To Strainer	22A341
39	Bolt	SH604031
40	Lock Tab	22A388
41	Bolt	GFK5180
42	Lock Tab	22A1365
43	Oil Pick Up Pipe	22G1150
44	Pick Up Pipe Gasket	22A542
45	Blanking Plate - Gearbox Oil Pipe	2A3637
46	Bolt	BH604131
47	Lock Tab	2K4874
48	Sump Plug	DAM7335
49	Sump Plug Copper Washer	22A134
	Magnetic sump plug with oil temp sender take-off	C-MAD004

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Oil Filter Head - spin on type		12A2032
2	Oil Filter - Mk1 - paper type		GFE103
	Oil Filter - Automatic to '96		GFE104T
2	Oil Filter - all models including SPi		GFE443
2	Oil Filter - MPi/MPi auto only		CDU1268
2	MPi oil cooler filter		2008
3	Flange Bolt - filter head to crankcase		TAM1186
	Stud - Oil Filter Head		CHS2513
	Nut - Filter Head		GFK3213
	Washer - Filter Head		GFK1115
	Spring Washer		MSLMS0047
4	Gasket - Oil Filter head to cylinder block - early		88G402
4	Gasket - Oil Filter head to cylinder block - late		12A2035
5	Pipe - oil filter to crankcase aeroquip	pre '90	TAM2106AERO
6	Screw - banjo union		2A715
7	Copper Washer		22A134
8	Connector-oil pipe		TAM2119
8	Connector-oil pipe		TCZ106
9	Pipe - oil filter to crankcase	'90 on	LQP10033AERO
9	Pipe - oil filter to crankcase		CAM1018-6
10	Tube Nut - pipe		LYH10014
11	Rubber Seal - pipe		LZB10017
12	Pipe - oil filter - gearbox to crankcase - Automatic		LQP10038
13	Adaptor-pipe to gearbox	NLA	DAM7601
14	'O' Ring - Automatic		22A1563
15	Oil Pump - 2 bolt 1275cc A+	Slot Drive	AHU1048
15	Oil Pump - high capacity	Slot Drive	CAM86614
15	Oil Pump - 850cc, 998cc, 1098cc	Peg Drive	12G793
15	Oil Pump - 1275cc	Spider Drive	CHM140
15	Oil Pump - 3 bolt 998cc A+	Slot Drive	GLP139
16	Gasket-oil pump		12G730B
17	Flange Bolt - pump to crankcase 1/4" UNF x 1 1/2"		TAM1174
17	Bolt - pump to crankcase 1/4" UNF x 1 3/4"		BH604141
	Spring Washer		GFK1124
18	Oil Pump - Automatic	NLA	GLP107
19	Screw - allen - pump to crankcase	NLA	12A1254
20	Pipe-oil outlet - Automatic		22A1185
21	'O' Ring - Automatic		22A1562
22	Block - outlet pipe - Automatic	NLA	22A1187
23	'O' Ring-internal - Automatic		22A1560
24	Valve - oil release		12H865
25	Spring - oil release valve		6K853
	Oil Pressure release valve	KIT	12H865KIT
26	Copper Washer - release valve		6K431B
27	Release valve cap nut		12A1851
28	Oil Dip stick	pre '97	LQM100380
28	Oil Dip stick	'97 on	LQM100630
	Oil Dip stick CHROME - Blue, Red or Polished top		MSLMS0539
	Oil Dip stick - Automatic		DAM7599
	Oil Pressure Switch		GPS133
29	Oil Pressure Switch	MPi	GPS135
