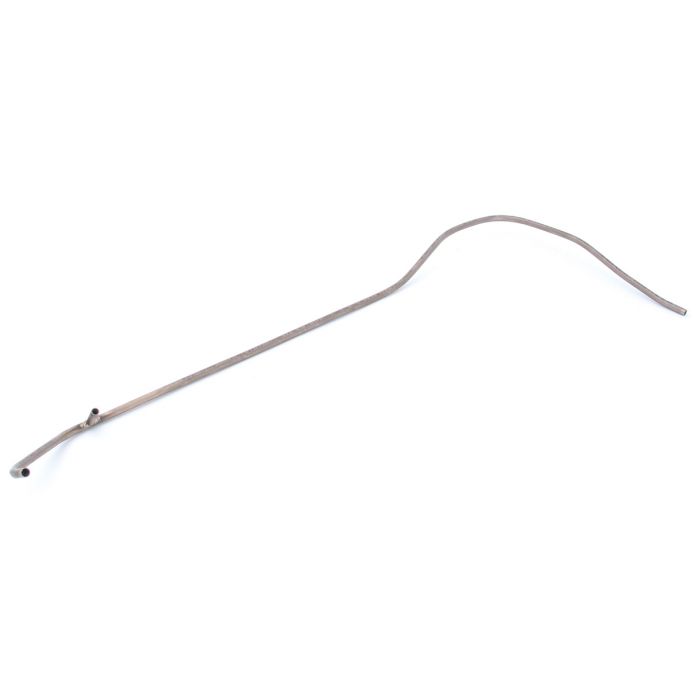

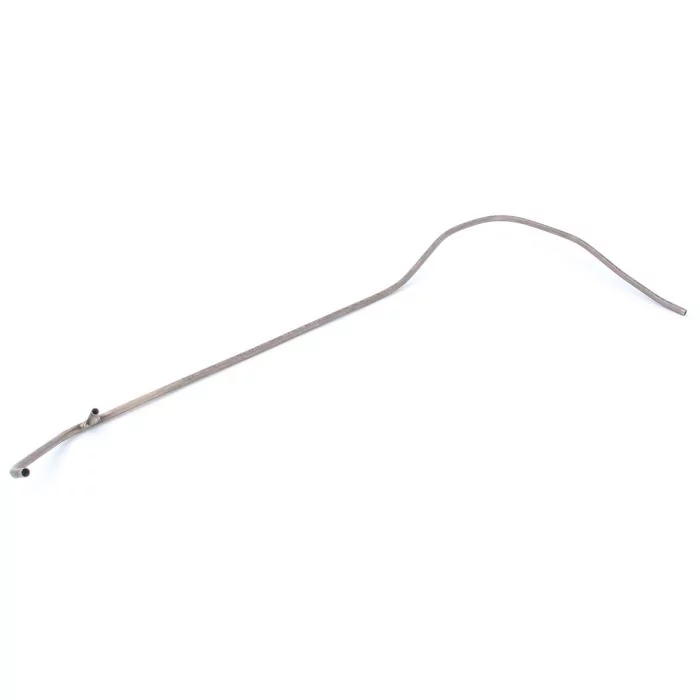

Fuel Tank Connecting Pipe - Twin Fuel Tanks

Name: Fuel Tank Connecting Pipe - Twin Fuel Tanks
SKU: 21A2331
Price: 21.444001 GBP
Availability: InStock

Be the first to review this product

Special Price £21.44 £17.87 Regular Price £22.27

In stock

SKU

21A2331

Fuel tank connecting pipe - twin fuel tanks

Frequently Bought Together

Fuel Tank Connecting Pipe - Twin Fuel Tanks
Special Price £21.44 £17.87 Regular Price £22.27
Locking Petrol Filler Fuel Cap - Original style
Special Price £16.06 £13.38 Regular Price £16.73
Seal Door Window Separator - Mk1
Special Price £14.05 £11.71 Regular Price £14.77

Details

This pipe connects the right hand fuel tank to the left hand fuel tank, on twin tank Mini models or for right hand fuel tank conversions.

Manufactured from 5/16" copper fuel pipe, it is precision formed so it will fit perfectly and is required to balance the fuel level between the tanks.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	7.5 gallon fuel tank Mini carb models '74-'90	LH	ARP1043
1	Injection fuel tank	LH	WFE106090
1	5.0 gallon fuel tank - steel	RH	21A2183
1	Van, Traveller, Pick-up fuel tank		21A291
2	Seal - tank - filler neck		2A2069
22	Fuel tank rubber neck grommet - to '96		14A7057
22	Fuel tank rubber neck grommet - MPi		WGG100010
17	Short tank strap		2A2231
17	Long tank strap		2A2226
	One Piece Tank Strap (diagonal fitment) - 7.5 Gal tank		21A2838
3	Van/estate sender unit		AAU8340
3	Carb type fuel sender unit		XNB10007
3	Injection fuel sender unit ('92-'01)		XNB100380
4	Mini Injection Fuel Pump - SPi and MPi		WFX100810
5	Seal - fuel pump to tank - SPi and MPi		EDP9317
6	Locking Ring for Fuel Tank Sender Unit		ARA1501
7	Sealing rubber ring for 7.5 gallon tanks		ARA1502
7	Cork Gasket for AAU8340		GUG705711GM
	Screws for Van Tank sender unit (6 required)		53K165
2	Seal - tank - filler neck		2A2069
8	Filler Cap Assembly - Non Locking - Black		WLD10027
8	Filler Cap Assembly - Non Locking - Chrome		WLD100350
9	Washer - Sealing		21A2109
10	Filler Cap Assembly - Locking - Chrome		WLD100660
11	Washer - sealing		21A2109
12	Pipe - vent - fuel tank (765mm long approx)		CRC7575
18	Screw - retaining - tank strap to floor		GHF120
	Nut - retainer - tank strap to floor		346071A
	Setscrew - 5/16" UNF - tank strap to bracket		13H7583
19	Washer - spring		GFK1125
20	Screw		SH605161
21	Washer - spring		GFK1125
23	Pipe - pump to tank - 233.6cm(92")	1m of Fuel Hose	37H6844M
24	Sleeve - pipe		WZV10002
25	Hose - tank to pipe - 290mm	1m of Fuel Hose	37H6844M
26	Feed hose - tank to underfloor pipe	1m of Fuel Hose	37H6844M
	Injection Fuel Filter - to VIN WD169573		GFE7059
	Injection Fuel Filter - to VIN WD169574		WJN101192
	Fuel Filter Bracket - SPi and MPi		WJU10142
	Fuel Filter Bracket - SPi and MPi - Stainless Steel		SMB160
	Fuel Filter Bracket - SPi and MPi - Powder Coated		SMB161
16	RH Fuel Tank connecting Pipe		21A2331
